Thread: 9-3 2004 wiring

  1. #1
    Saab Newbie
    Join Date
    Aug 2010
    Location
    gulf coast
    Posts
    11

    Have a cable on the driver front side that hung on something while driving and ripped it loose. My problem is that the male portion of the plug is gone and the wires are partially ripped from the remaining piece of the female plug and I need help identifying which wires match from the input side to the output side of the plug. The color code is slightly different from input to output of the plug.

    The cable has a label on it that says 58804 & AO 530411E. It is located just in front of the wheel well, it has seven wires into and out of the plug. It is a 10 position plug labeled 1-10. Here are the wire colors, male side...y/gn, bk/y, y, v, bk, o/y, and wh. Female side....y, y, gn, bl, v, o, and bk.

    Female Part of Plug has a few wires intact:
    1-yellow (y)
    2-orange (o)
    3-black (bk)
    4-
    5-
    6-yellow (y)
    7-violet (v)
    8-
    9-
    10-

    Does anyone have a wiring diagram for this? If not can someone help by looking at theirs and writing it down? Thanks!!!!!

  2. Remove Advertisements
    SaabScene.com
    Advertisements


  3. #2
    These wires are for the front fog lights and the exterior temp sensor that's located in the front bumper. Will have a look at it tomorrow for you.

  4. #3
    Saab Newbie
    Join Date
    Aug 2010
    Location
    gulf coast
    Posts
    11
    These wires are for the front fog lights and the exterior temp sensor that's located in the front bumper. Will have a look at it tomorrow for you.[/b]

    Thanks so much!

  5. #4

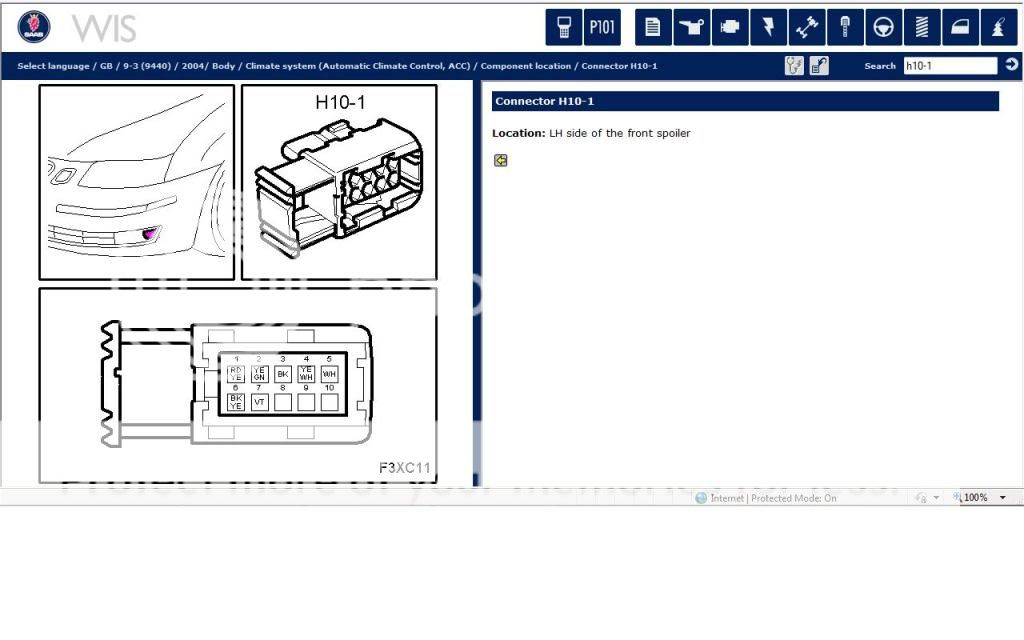

    This is the best i can do i think its only the female part though. Sorry

  6. #5
    Saab Newbie
    Join Date
    Aug 2010
    Location
    gulf coast
    Posts
    11
    Thanks bud! I think I can work from the diagram you sent. There are only two wires in question and trial and error with a voltmeter will solve that.
